What Is Displayed in This Widget?

This widget will inform you of the number of product orders in each production status.

A product order can have any of the five statuses:

  1. Not active
  2. Planned
  3. In progress
  4. All complete
  5. Finished

A grid of five status icons with numbers: grey

How to Deploy This Widget?

Please follow the steps below to deploy this widget to a new dashboard. However, if you would like to deploy this widget to an existing dashboard, then you can navigate to that dashboard and start from step No.4 instead.

  1. Click on “Dashboards” on the side panel.
  2. Click on the plus icon under “Dashboards”.
  3. Type in the new dashboard name.
  4. Click on the yellow plus button on the bottom right of the screen.
  5. Navigate to “Amount of product orders for selected status” under the “Product orders” widget category, and click on “Create”.
  6. You can choose to display product orders that are based on either an article/article category or a batch order number. If you choose the former: click on the dropdown menu under “Article or category”, and select the article/article category. If you choose the latter, click on the dropdown menu under “Batch order number”, and select the targeted product order number.
  7. Click on the dropdown menu under “Status”, and select the status that you would like to be displayed on the dashboard. This field is optional, but we recommend that you choose a status.
  8. Click on “Add”.
  9. Adjust the widget’s size as desired.
  10. Click on the three-dot icon on the widget.
  11. Click on “Format widget”.
  12. Type in the status name under “Title”.
  13. Click on “Save”.
  14. Click on “Yes”.
  15. Adjust the widget’s size as desired.

Note: The steps above will lead to the creation of a widget for 1 status. If you want to display all 5 statuses, repeat the steps above 4 more times until you have 5 widgets that show all 5 statuses.

You can also a create widget that shows the total number of available product orders in your workspace by not selecting anything on the dropdown menu under “Status”.

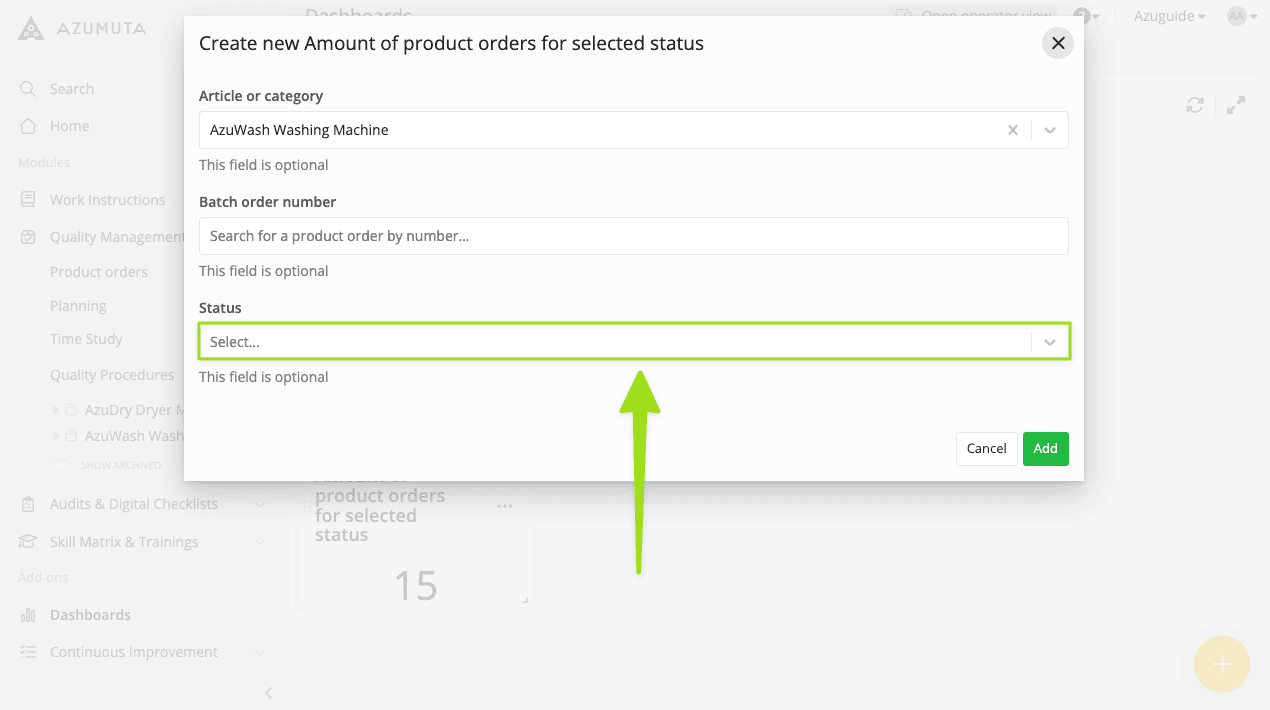

A screenshot showing a form titled

Configuring the Widget

Check out how you can configure an Azumuta widget in the widget configuration guides.
